Art. No. 61 525 77

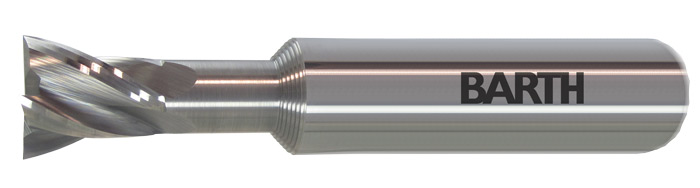

Solid Carbide dovetail cutters Angle Milling Cutter

in stock, instant deliverable!

Description

Solid carbide angular milling cutters / dovetail cutters
Conical milling cutter that tapers from the front to the shaft

The angle cutter (dovetail cutter) is designed to mill rear bevels and dovetail grooves without having to re-clamp the workpiece.

We lead the angle cutter with the setting angle 1°; 2°; 3°; 5°; 7,5° ; 10°; 15°, 20°, 25°, 30° and 45°, what is a milled slope of 89 °; 88 °; 87 °; 85 °; 82.5 °; 80 °; 75 °, 70 °, 65 °, 60 ° and 45 ° as a result on the component.

The cutting edge geometry of the angle cutter is tuned for universal use.
Diameter 25 and larger are made with 6 cutting edges.


Implementation:
Cutting Direction: Right Hand, uncoated
spiral-toothed with 3 bevel back taper with excellent cutting properties
Front end center cutting
Angle cutters / dovetail cutters are manufactured according to Barth company standard.

Cutting data Recommendation for Solid Carbide Angle Milling Cutter 6152577:

Cutting Data Recommendation Soldi Carbide End Mill

Carbide ultra-fine grain made in Germany
Milling cutter made in Germany by Barth Schleiftechnik GmbH

Info:

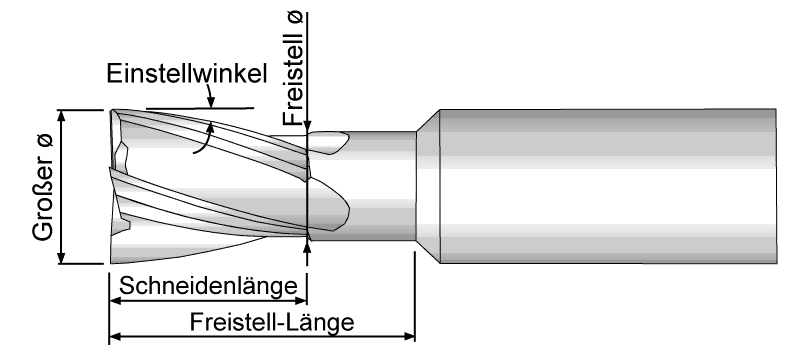

Shank shape HB = Angle milling cutter with clamping surface
Shank shape HA = Angle milling cutter without clamping surface
